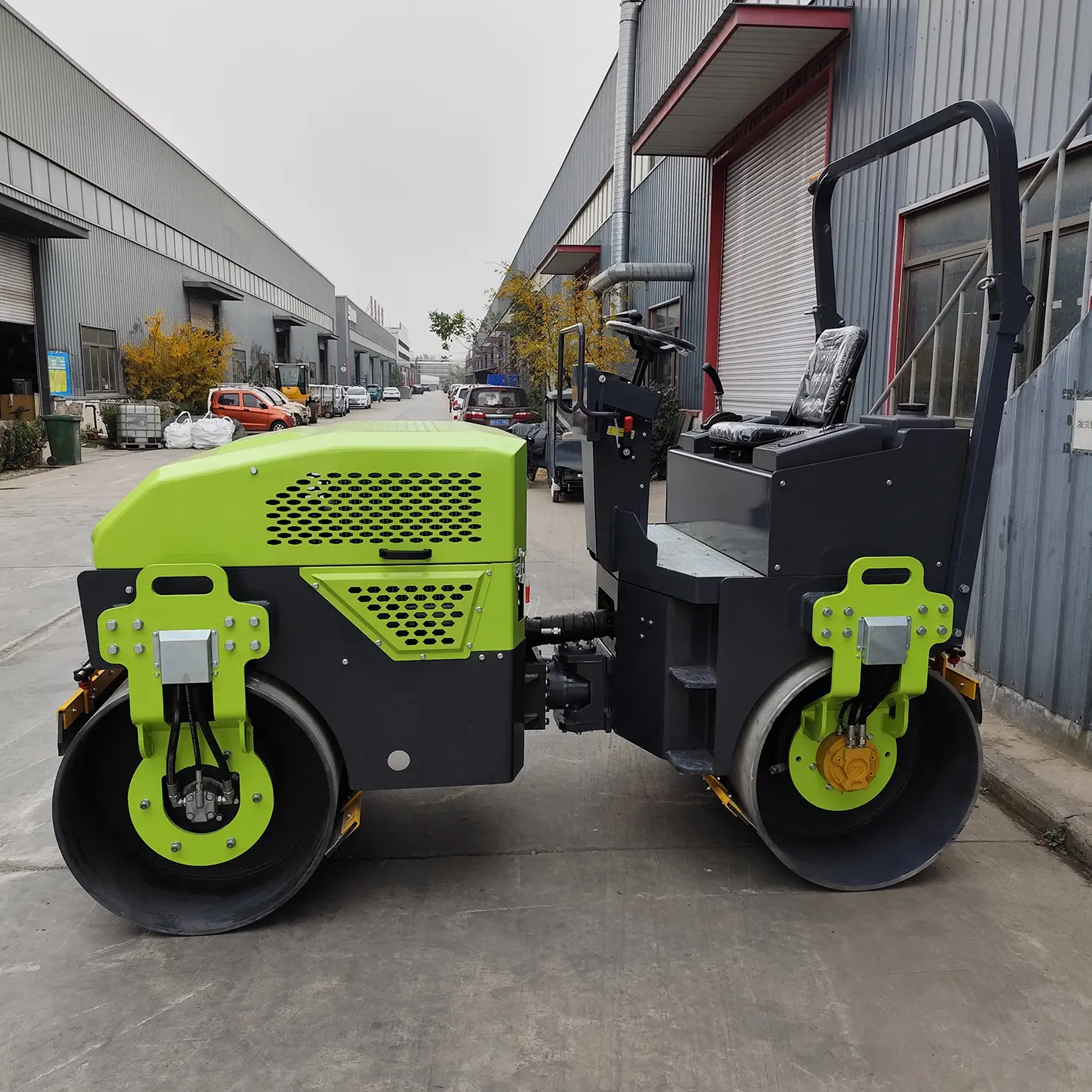

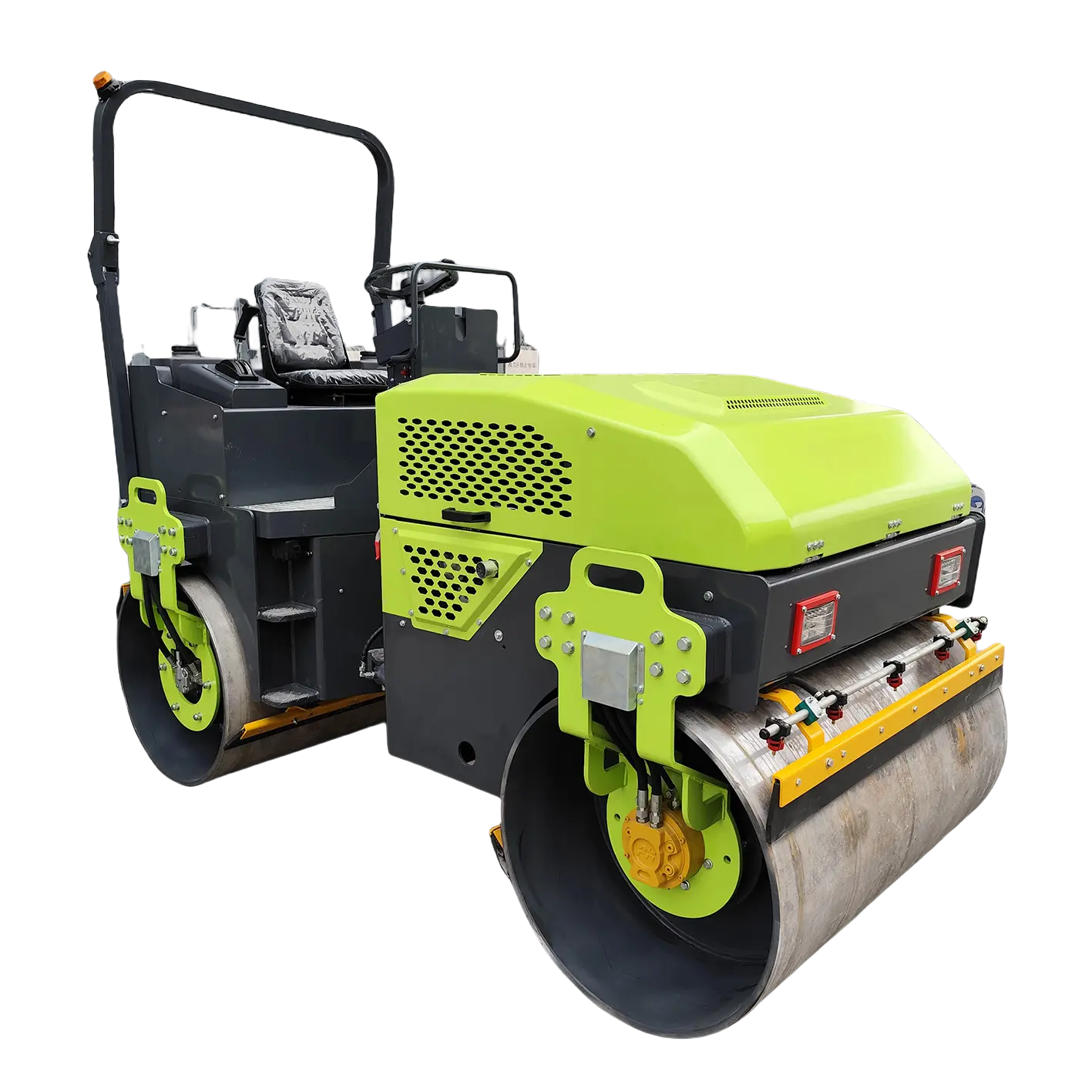

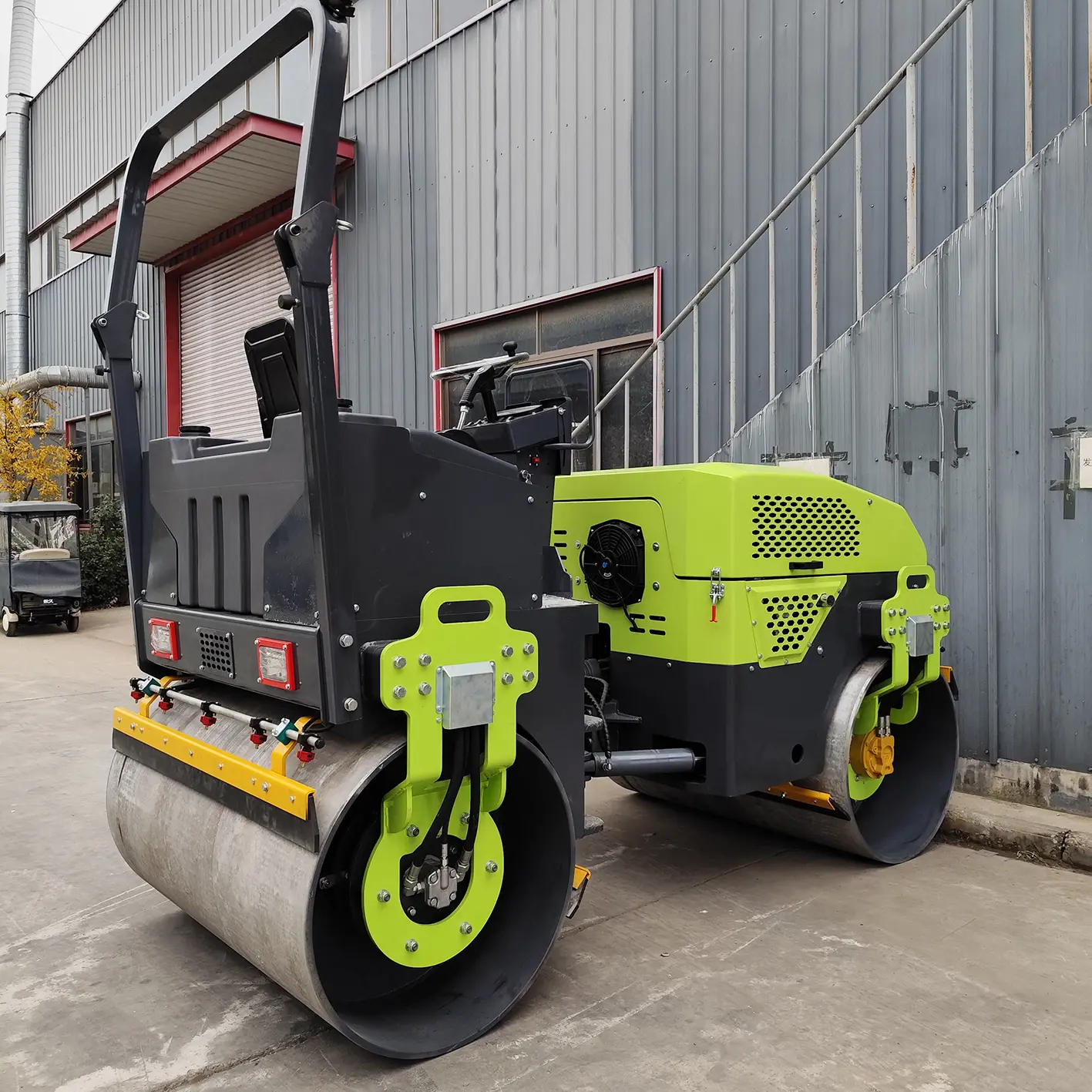

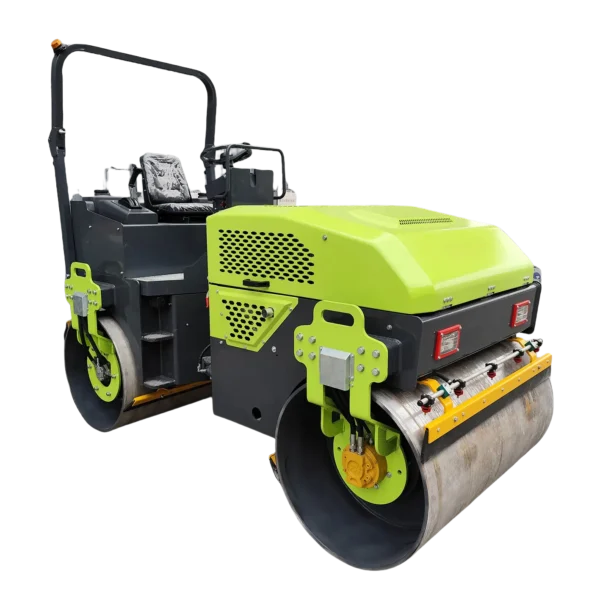

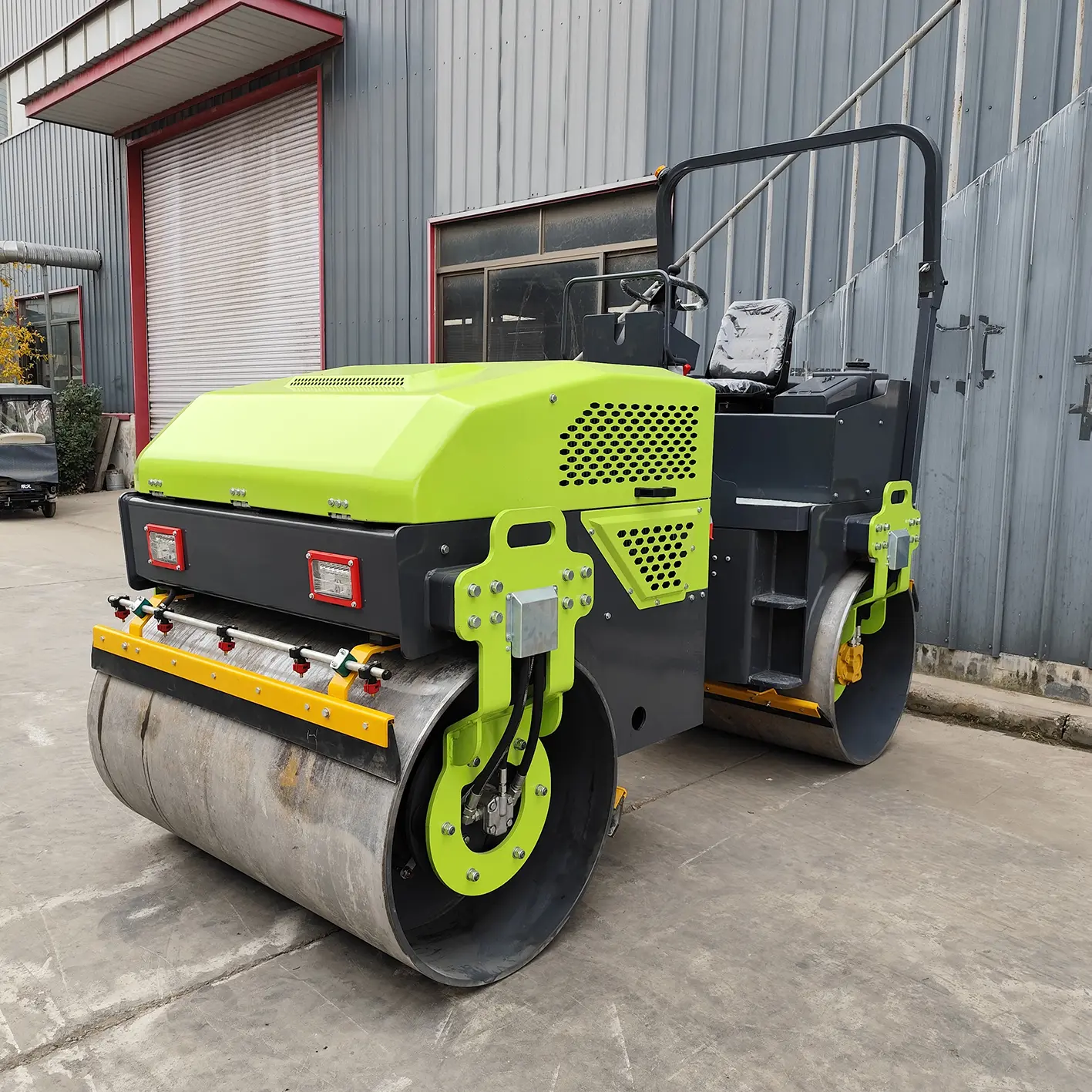

4 tons high quality double drum hydraulic vibratory roller MS-1400

The 4-ton double-steel-wheel roller (double-steel-wheel vibratory roller) has high-density compaction and efficient operation as its core advantages, and is especially suitable for asphalt surface layer and hard base construction with high compaction strength and efficiency requirements.

Its core advantages are reflected in the following aspects:

High-density compaction, suitable for high-strength demand scenarios

High-pressure strength:

• The double-steel-wheel design provides high-line pressure, combined with the vibration function (high frequency/multiple amplitude optional), quickly breaks the gap between aggregates and improves the density of materials (especially suitable for hard materials such as asphalt mixtures and gravel bases).
•  The vibration + static pressure combination mode can compact thick bases (such as ≥10cm asphalt layers) in layers to avoid loose materials inside.

Uniform compaction:

•  The synchronous vibration of the double-steel wheels reduces the “wheel mark” residue, ensures compaction uniformity, and avoids local settlement.
• The surface of the steel wheel can be sprayed with water to prevent sticking, reduce the adhesion of asphalt materials, and ensure continuous operation quality.

Additional Specs

Operating weight: 3850kg

Total length: 3000mm

Total width: 1560mm

Total height (excluding anti-collision beam): 2000mm

Steering mode: Hydraulic steering

Engine optional (National II/National IV/EPA/Euro V): Changchai 490/Yanmar 386
Other engines can be consulted separately
