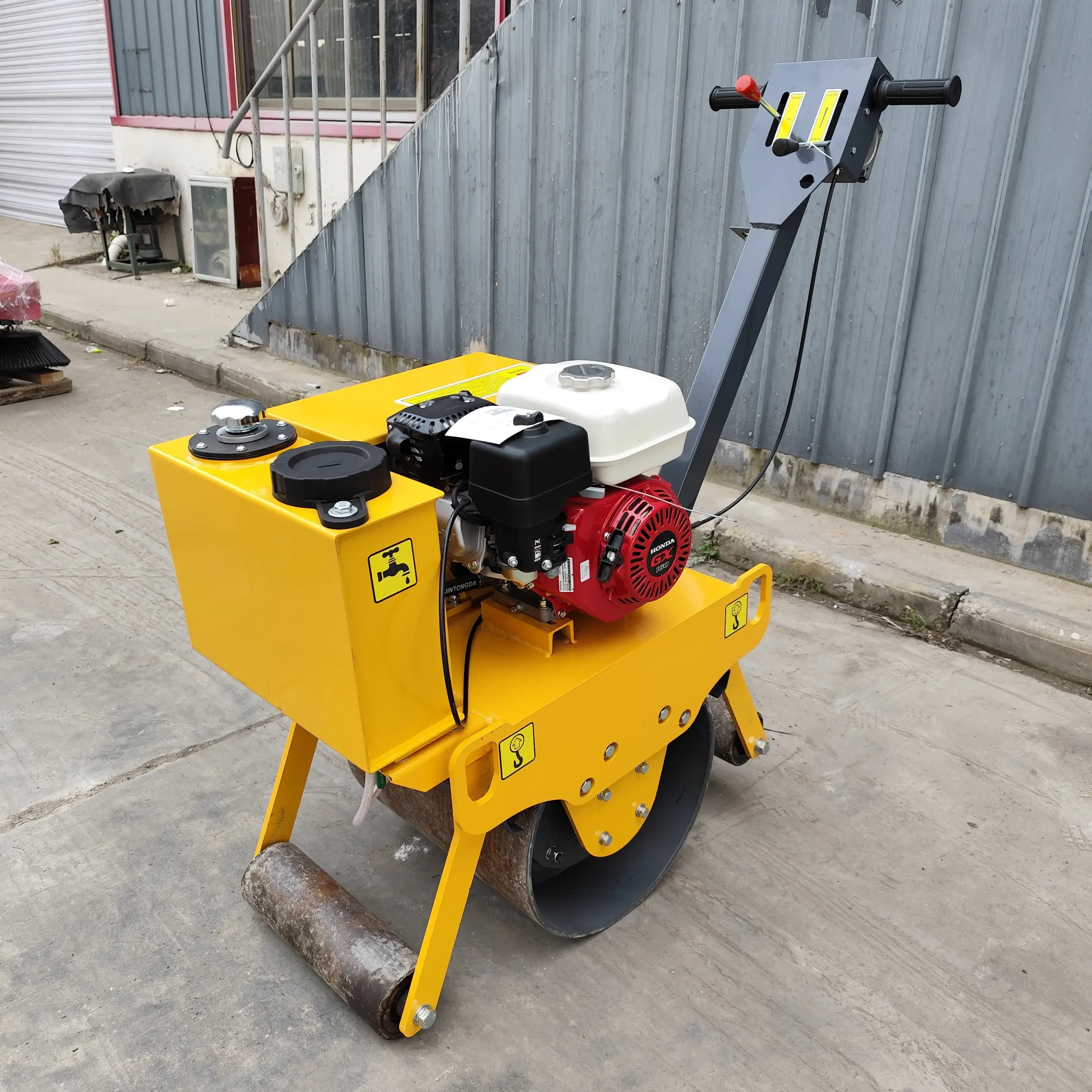

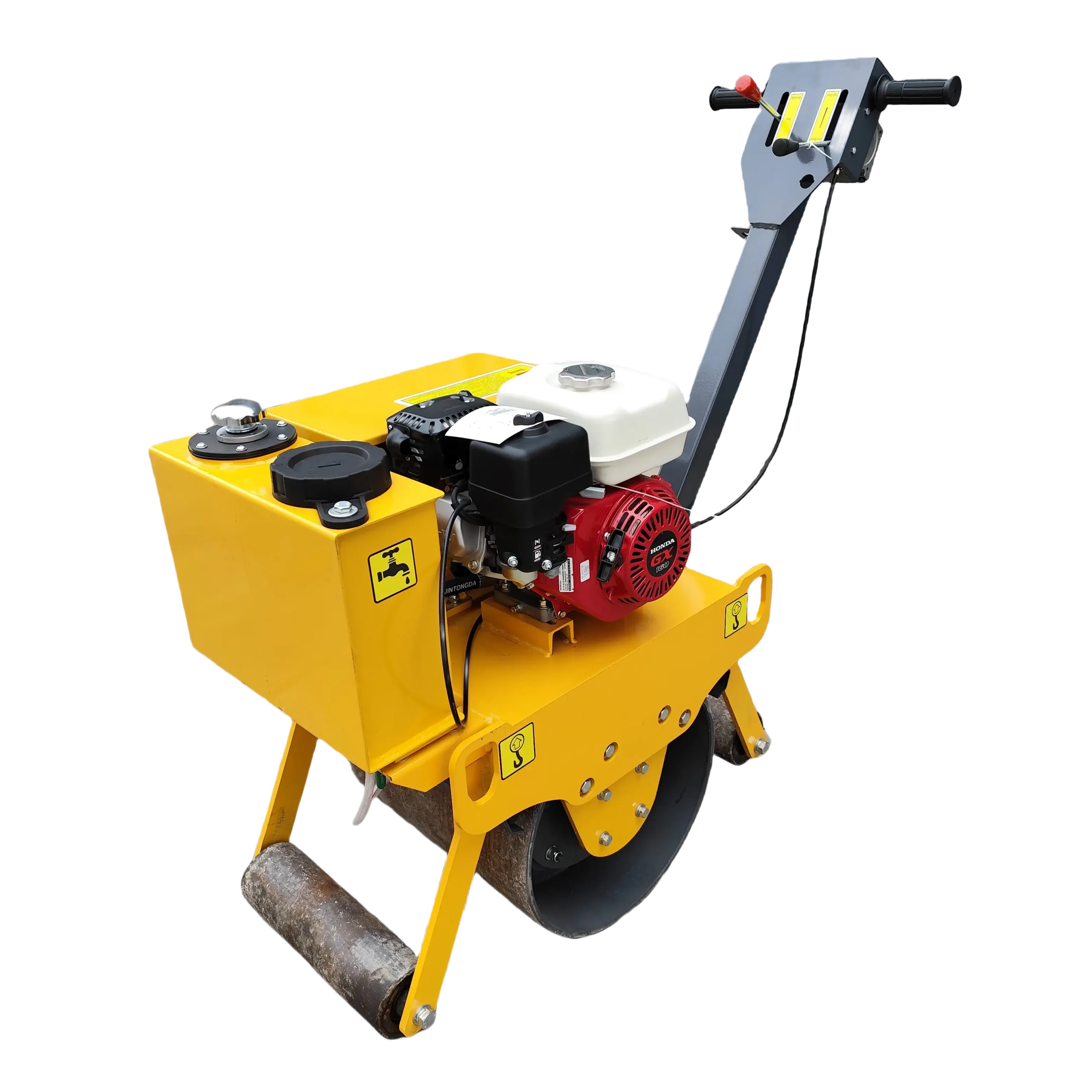

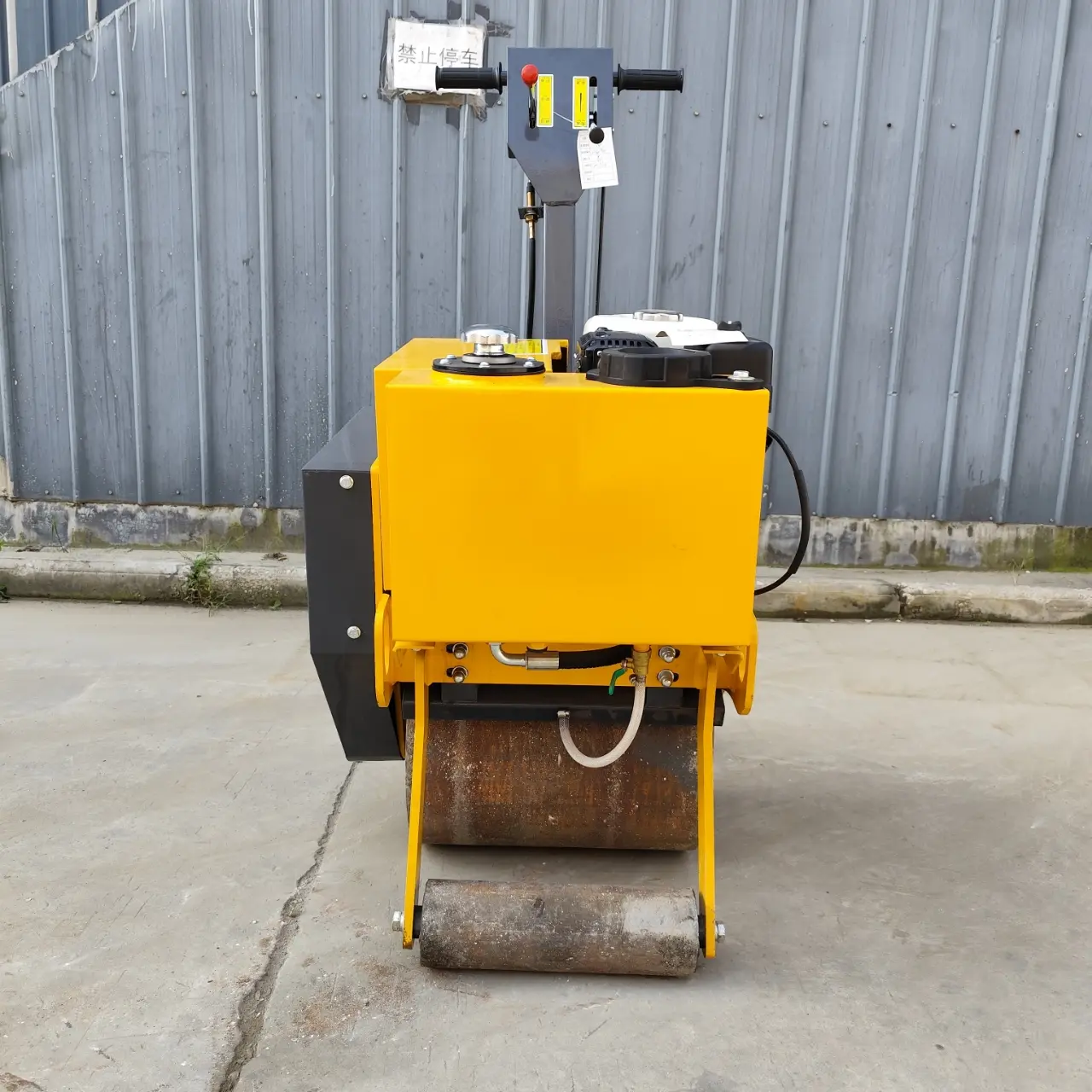

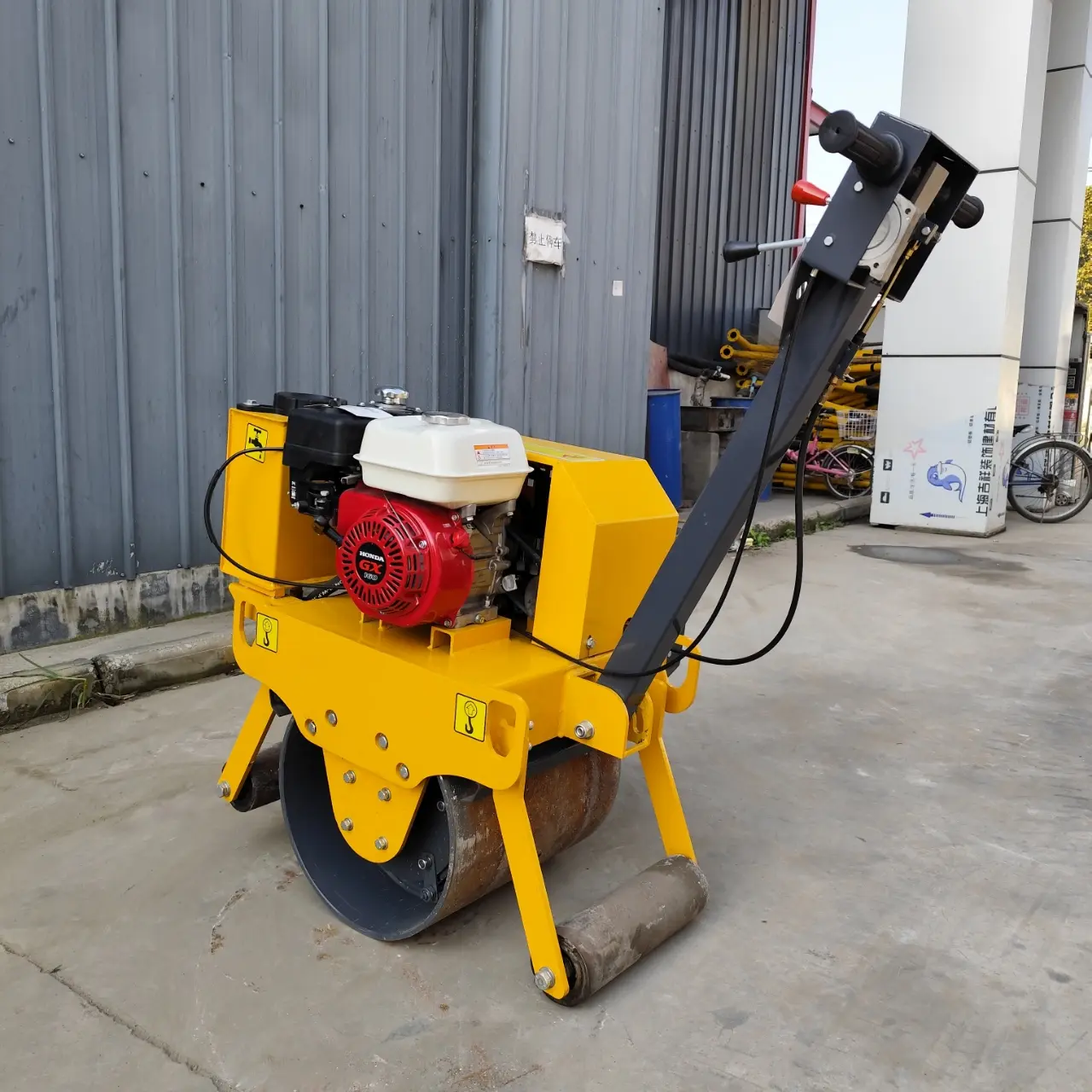

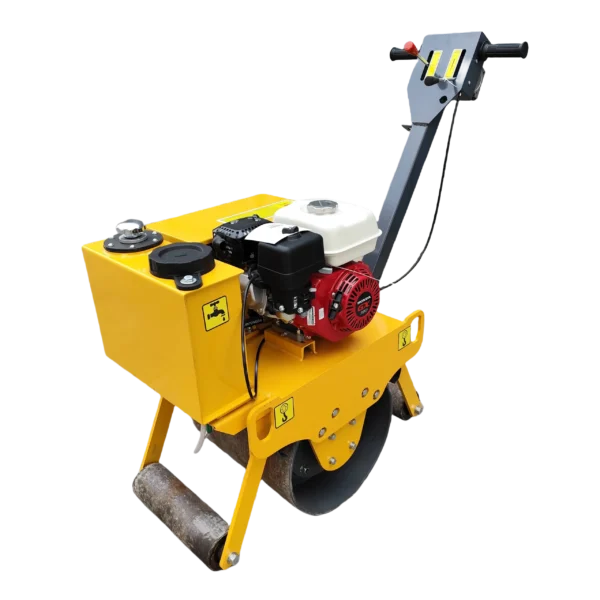

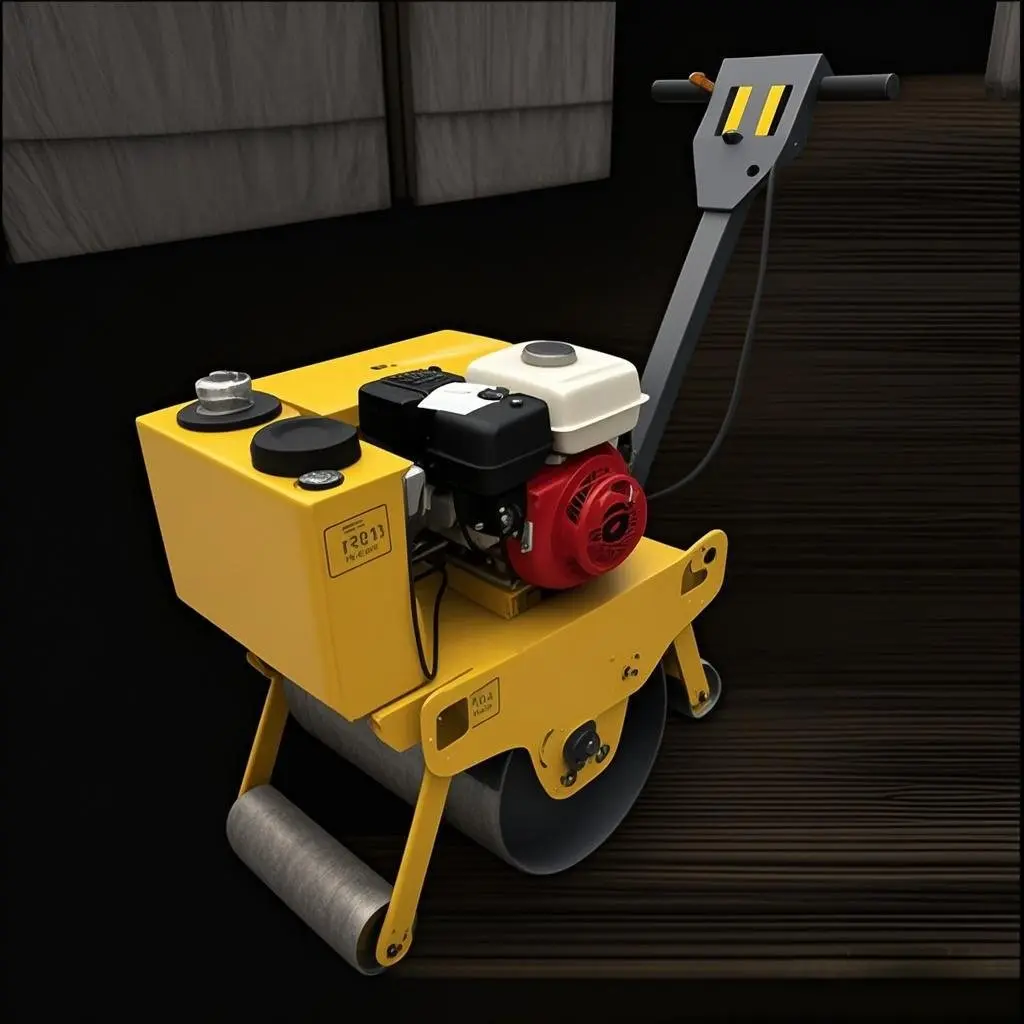

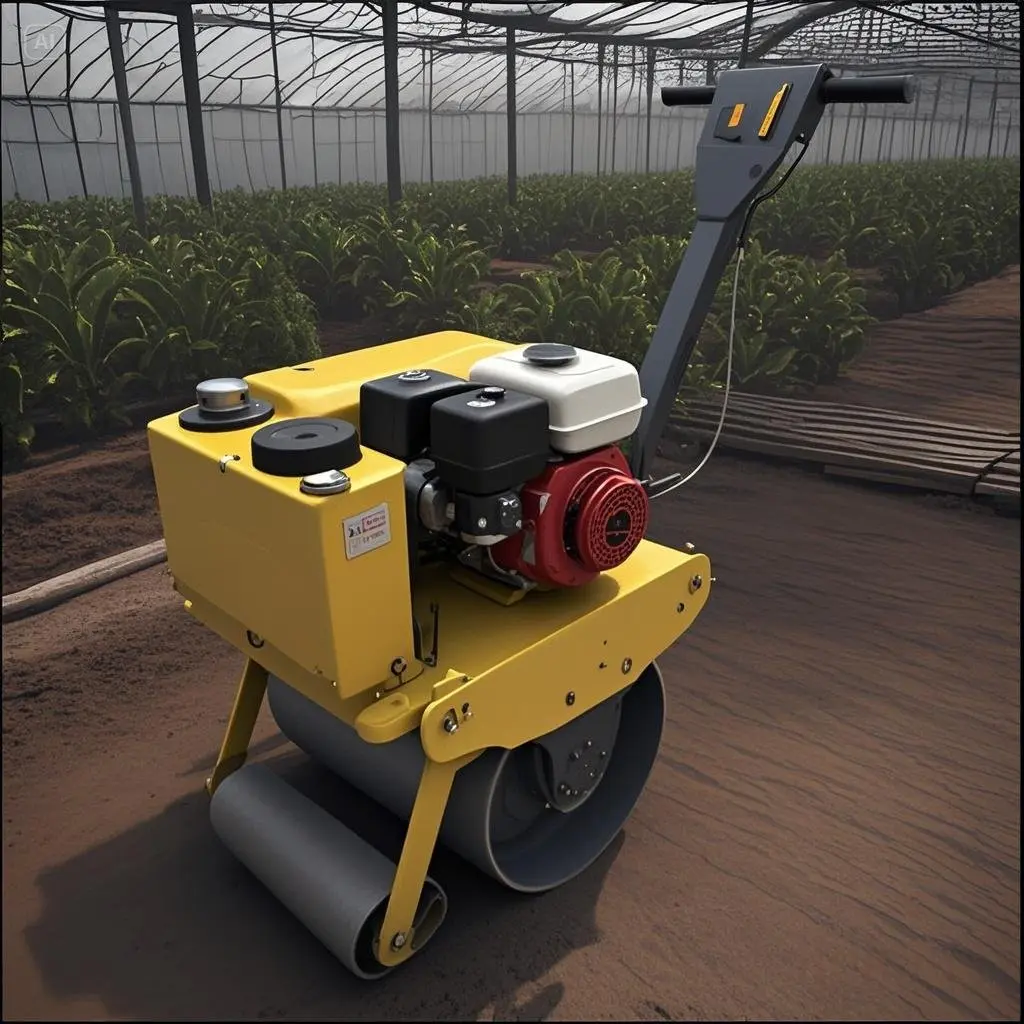

The MS-450 walk-behind single-drum vibratory roller is compact, versatile, and easy to operate, providing 2,600 pounds of compaction force. It is equipped with a reliable Honda GX390 gasoline engine (electric start), a variable piston pump, continuously variable speed, and hydraulically controlled one-button vibration. It is an ideal equipment for highway maintenance, asphalt repairs, driveways, small parking lots, trails, landscaping, and sidewalks.
1. This single drum roller is equipped with an automatic emergency stop control system, which activates when the operator releases the handle. Additionally, it features a reverse travel safety protection system, ensuring that the machine continues to move forward even when the operator releases the handle during reverse operation.
2. The easy-to-operate control system design enhances operator comfort.
3. The operation handle is ergonomically designed and adjustable in height.
4. The self-cleaning scraper prevents dirt accumulation.
5. The steel wheel edge is designed with a chamfer to eliminate any traces left on the ground.
6. The smaller side clearance allows it to get closer to curbs, walls, and other obstacles.
7. The compact design makes it easy to operate even in confined spaces.
8. The thicker steel wheel coating ensures a longer service life.
9. The large, corrosion-resistant water tank is detachable, making it easy to add water or clean.
10. The hydraulic drive system offers multiple travel and vibration speeds, meeting the needs of new construction sites without any modifications.
11. The built-in cooling fan allows continuous operation without downtime and can withstand long periods of use.
Operating weight：280kg
Total length (armrests laid flat)：1650mm
Total width：590mm
Total height (armrests erected)：1350mm
Vibration form：Automatic vibration– Centrifugal clutch
Engine optional (National II/National IV/EPA/Euro V)：Honda 160/Briggs & Stratton 5HP Other engines can be consulted separately
Efficient single-person operation: The handle integrates the throttle, vibration switch and emergency stop button, so the operator can control it with one hand while walking and following, reducing physical exertion.
Real-time adjustment of compaction path: The operator can observe the contact status between the steel wheel and the material at close range, and adjust the walking route or vibration mode in time to avoid pressure leakage or material displacement.
Emergency brake protection: The design of stopping when releasing the hand (centrifugal clutch or brake system) quickly cuts off the power in an emergency to reduce the risk of accidents.
Narrow space operation: The width of the machine body is usually only 60cm, which can easily enter narrow areas (such as pipeline trenches, the inside of curbstones, and basement passages), filling the compaction blind spots that large equipment cannot cover.
Quick transition: The weight of the whole machine is moderate, and the handle can be removed or folded to be transported by small trucks, pickup trucks, or even manpower, which is suitable for contractors who frequently transfer to multiple construction sites.
Terrain adaptability: The steel wheel has a large diameter and can cross small obstacles (such as stones and gaps) and adapt to slightly uneven ground.
A: Color
B : Different engines (Changchai,Loncin, B&S, Honda, Yamaha,).
C: Labels customization.
D: Logo customization.
E: Package customization.
F: Manual books customization.
G: Structure components customization.
A:Solid carton,steel frame with carton cover or wooden case
A: Usually the MOQ is 1set, but it will be adjusted accordingly if customers need OEM or ODM customization.
A: Sample will take 10days,mass production will need 25days.
